Bromic Platinum Smart-Heat - Electric Series
$1,289.00
- Safe & Secure Checkout
- 1 Year Warranty
SKU: BH0320019
Barcode: 9320688217202

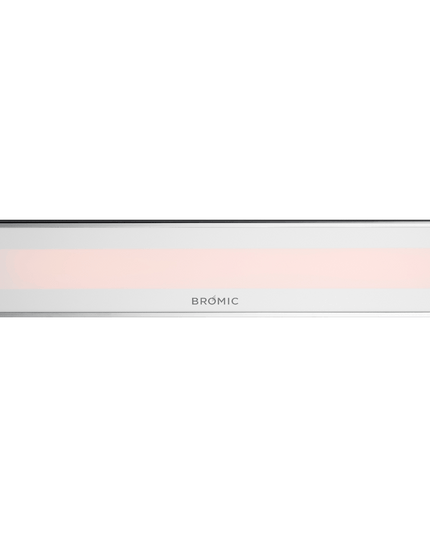

Bromic Platinum Outdoor Heaters
The Ultimate Premium Heating Solution
Discover the Bromic Platinum Outdoor Heaters, a premium gas and electric heating solution that perfectly balances performance, reliability, and beauty. The award-winning Platinum Smart-Heat™ Collection is meticulously designed to seamlessly integrate into design-focused spaces, making it the ideal choice for both residential and commercial outdoor environments. Here’s a detailed overview of the exceptional features that set the Bromic Platinum Outdoor Heaters apart:
Award-Winning Design

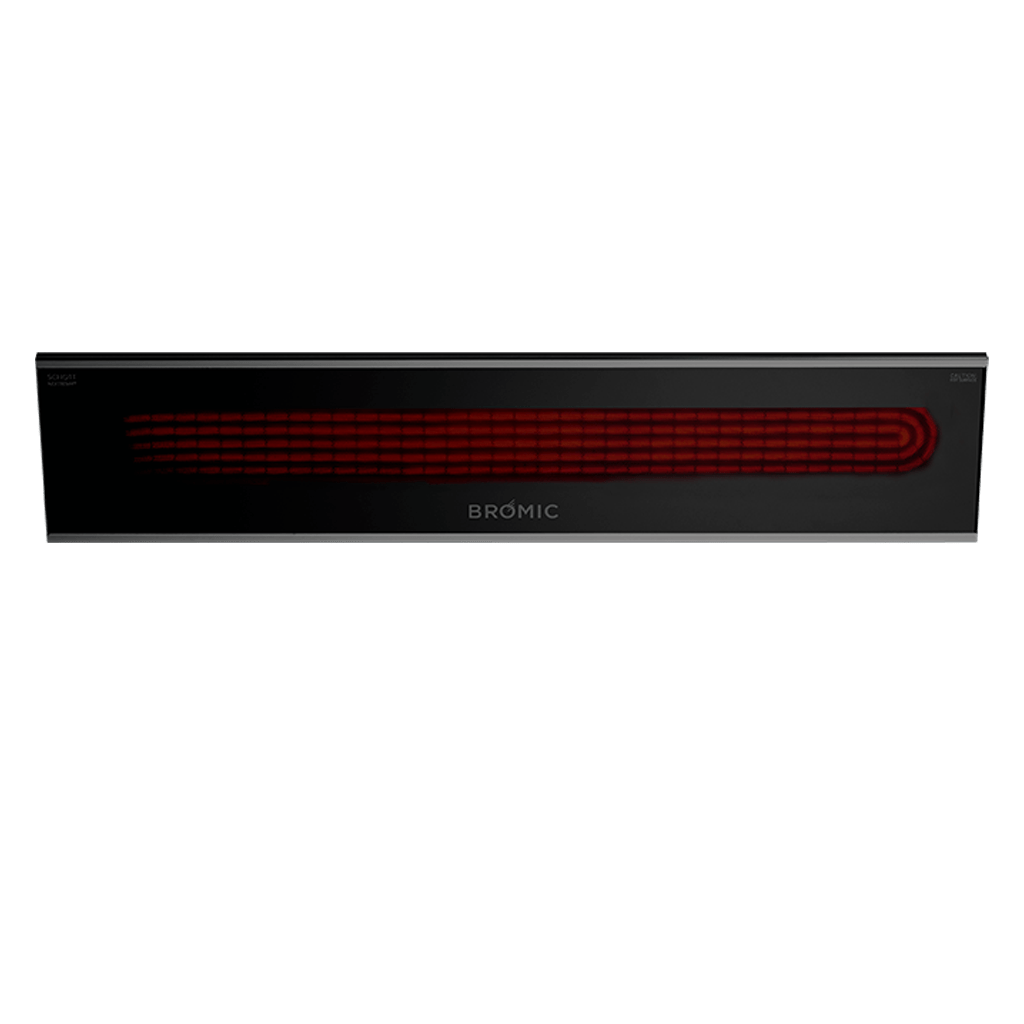

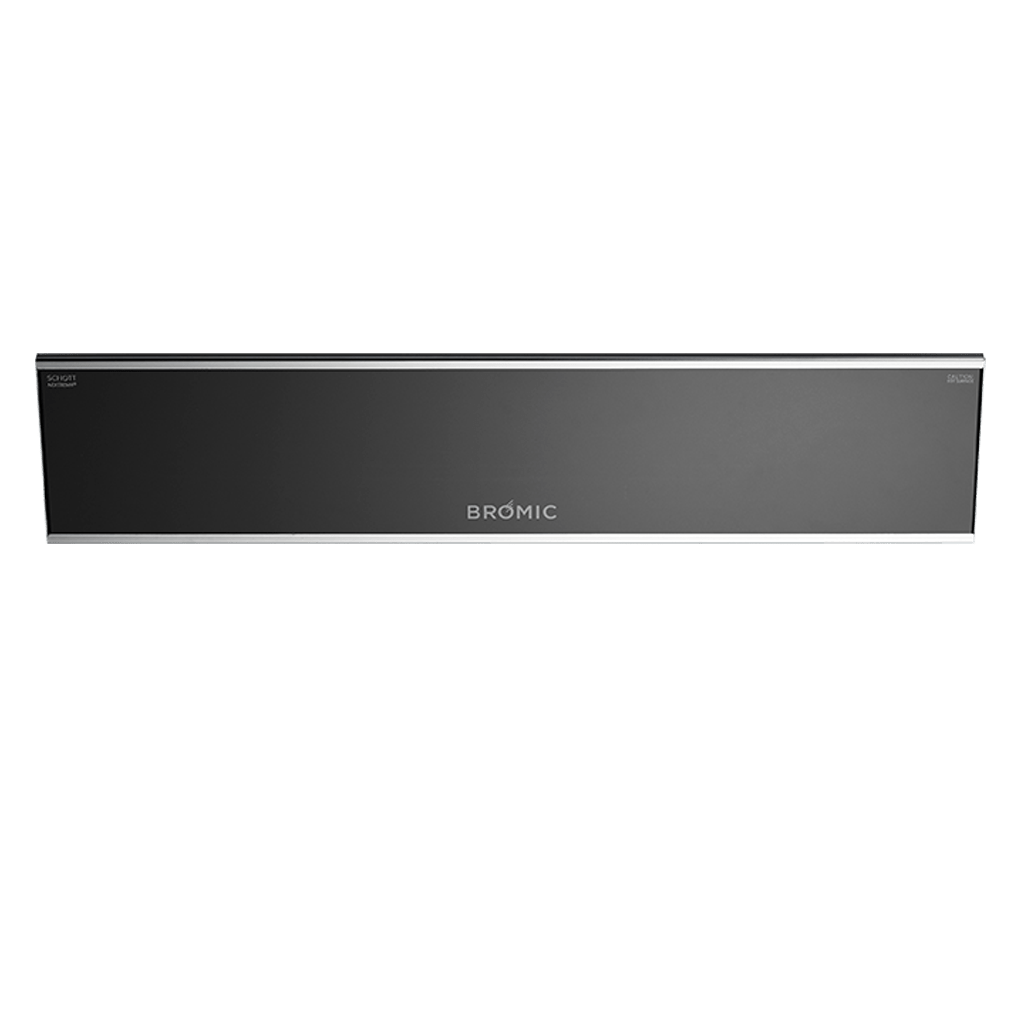

- Low-Form Factor Aesthetics: The Platinum Smart-Heat™ Electric series features a low-form factor design that virtually disappears into its surroundings. This innovative approach creates an industry-leading outdoor heating solution that enhances the visual appeal of any outdoor space without compromising on performance.
Superior Technology
- Advanced Heat Distribution: Composed of a fully sealed heater body and a premium tinted ceramic-glass fascia, these low-form factor heaters are engineered to spread radiant heat evenly across a large area. This design minimizes wind interference and unwanted light emissions, ensuring a comfortable and inviting atmosphere.
Complete Versatility

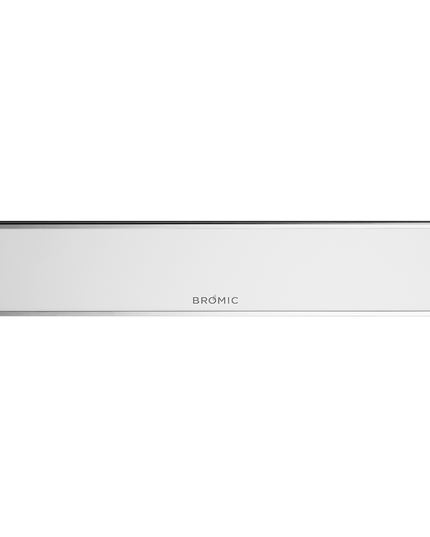

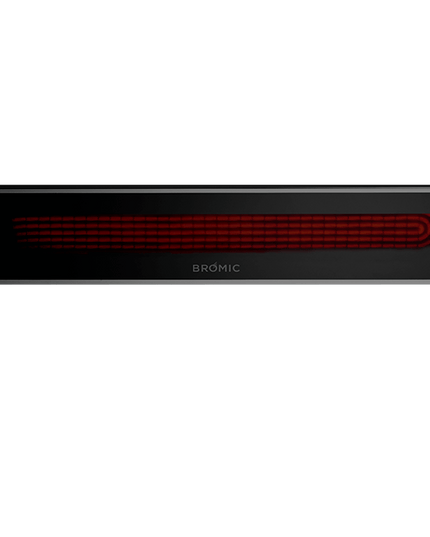

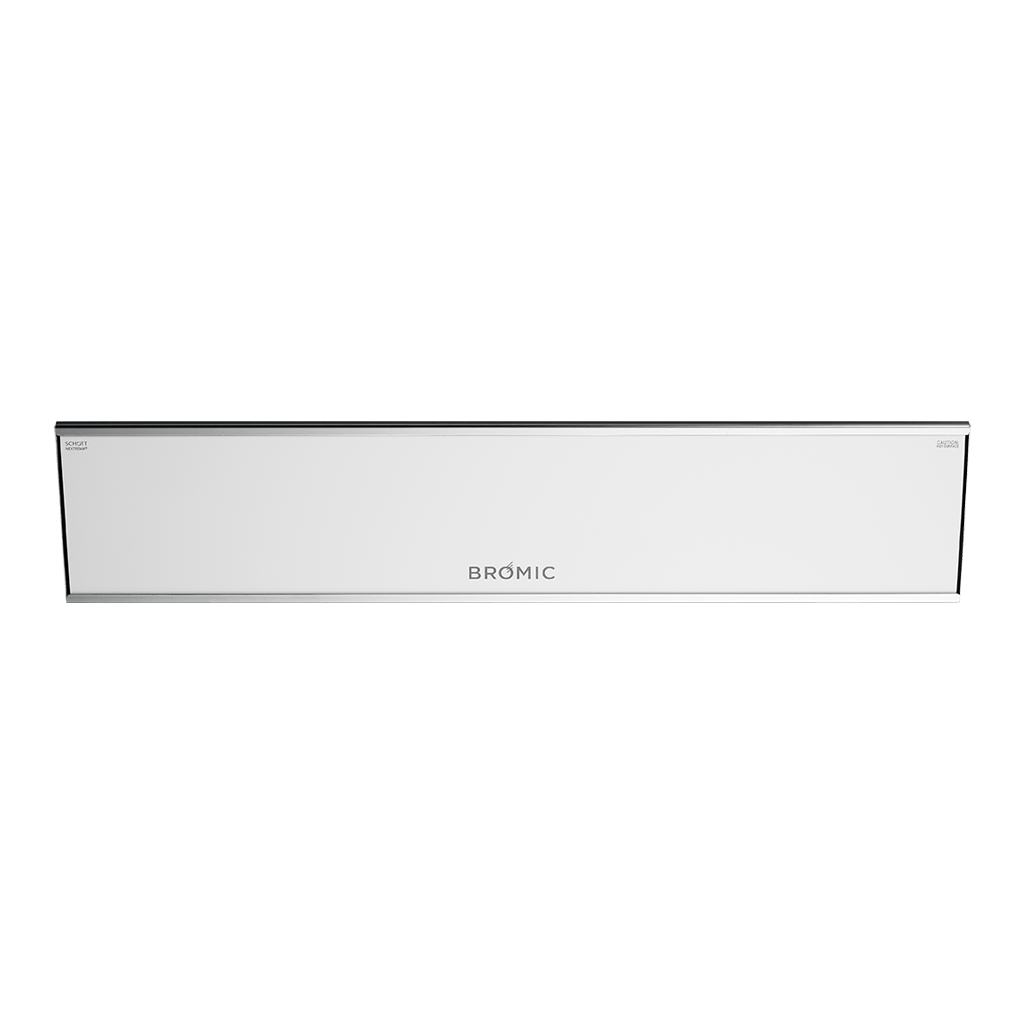

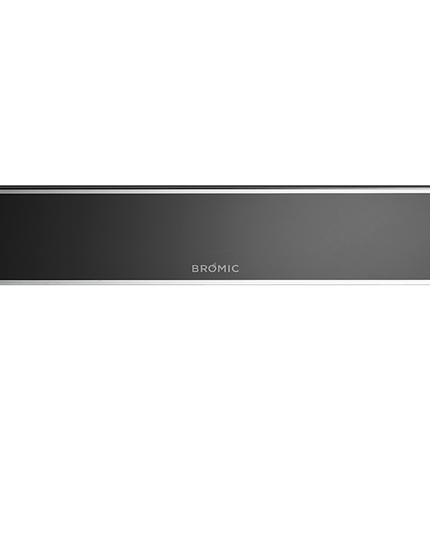

- Diverse Finishes and Power Options*: The Platinum Electric Collection is available in both black and white finishes, allowing you to choose the perfect match for your outdoor decor. With three power options (2300W, 3400W, and now 4500W) and voltage offerings of 208V and 220-240V, these heaters meet a wide array of design needs and preferences.

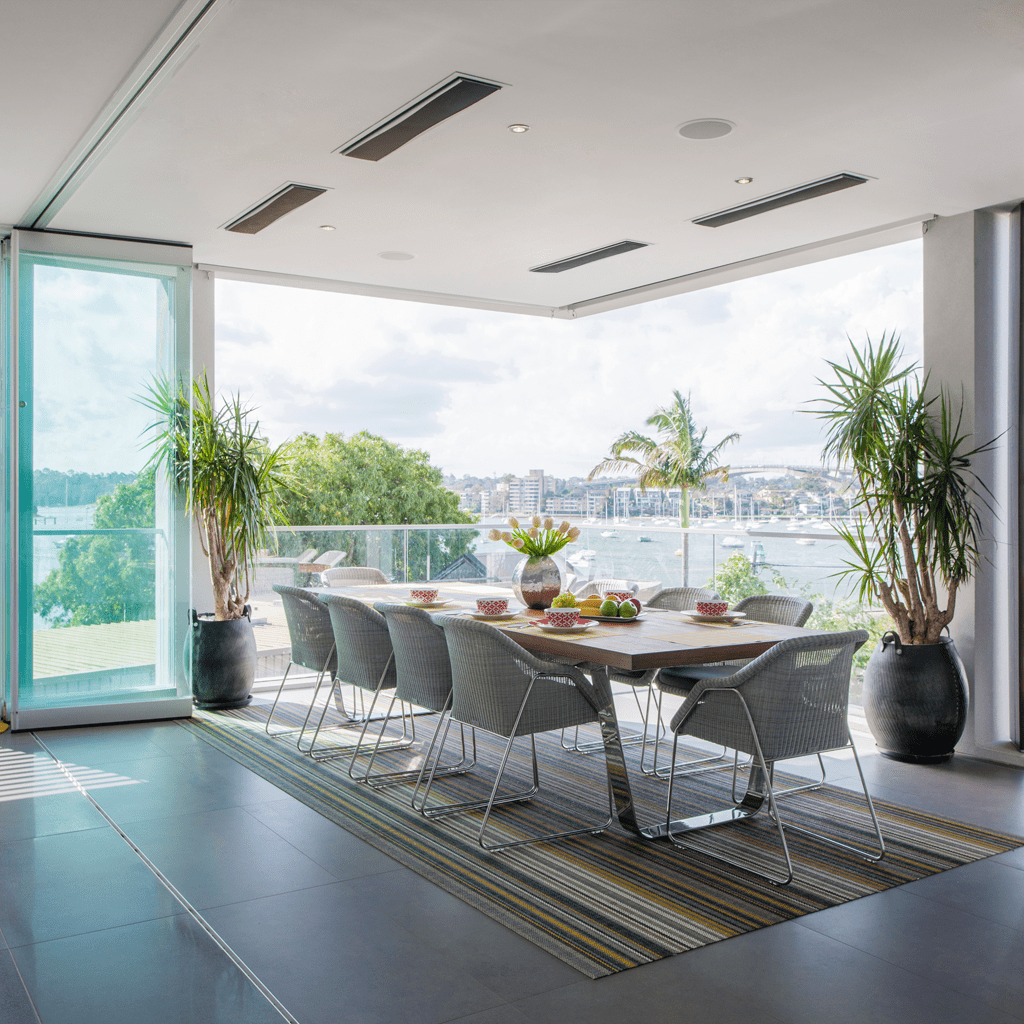

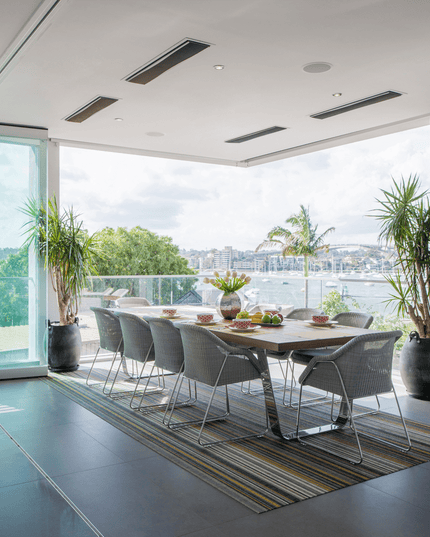

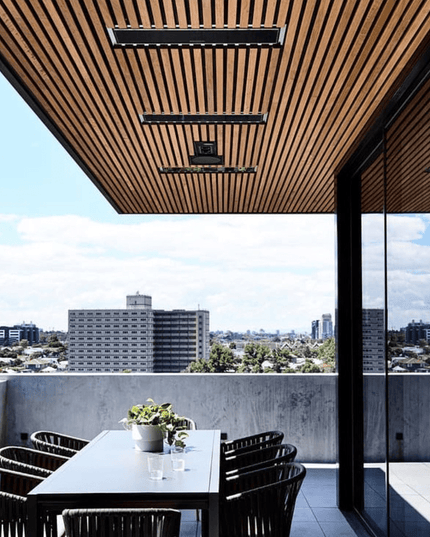

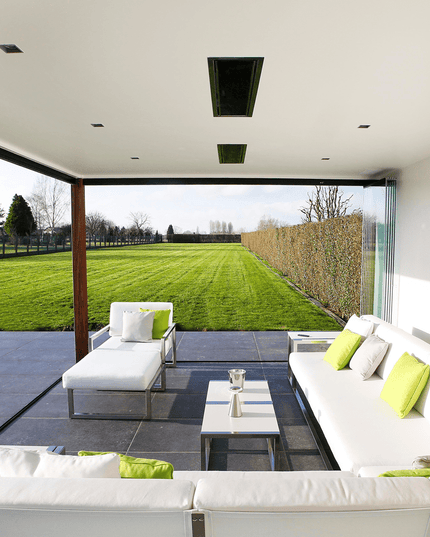

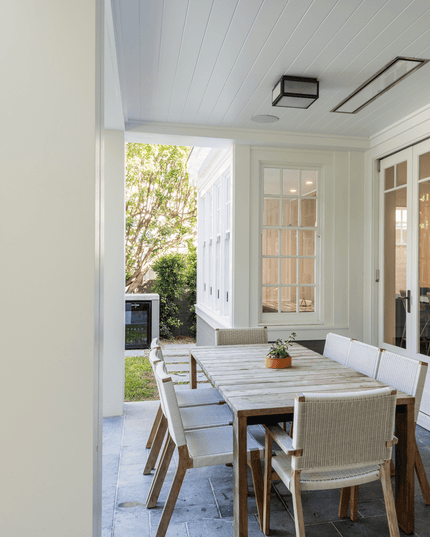

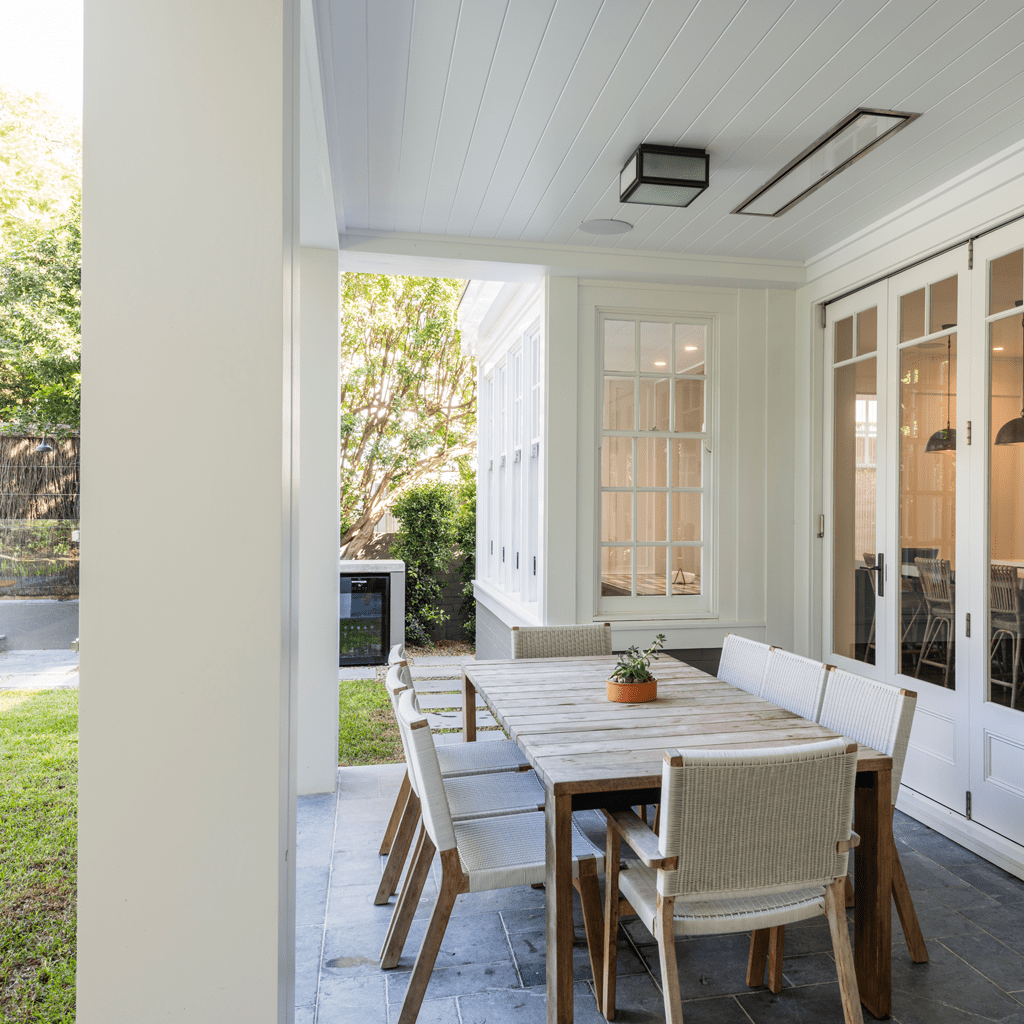

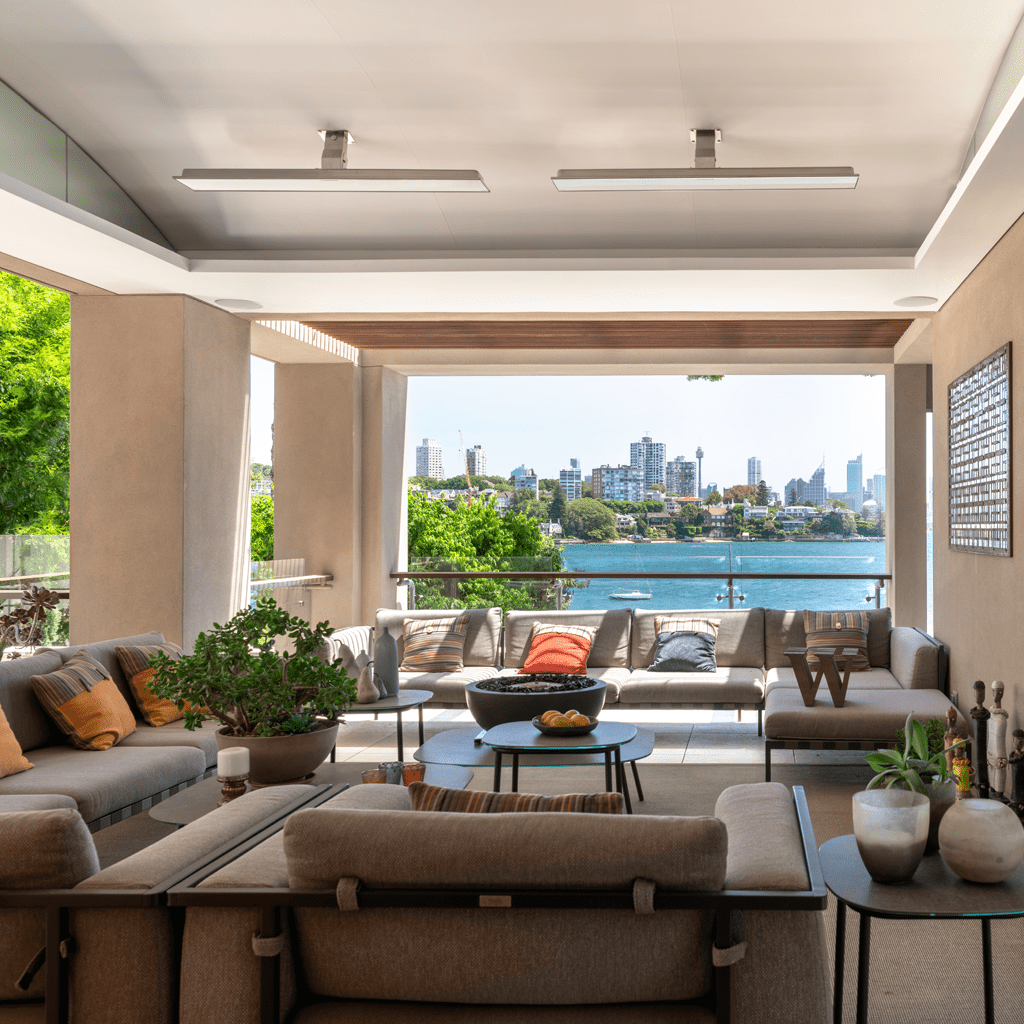

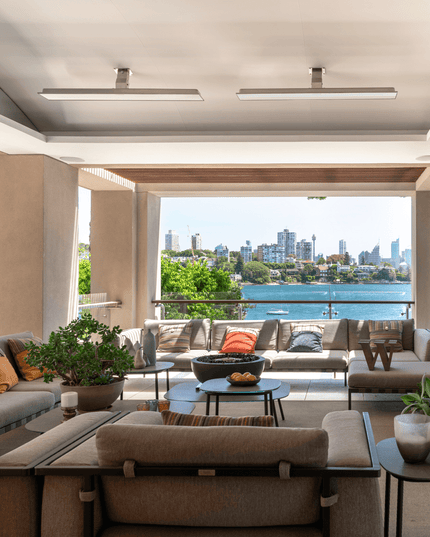

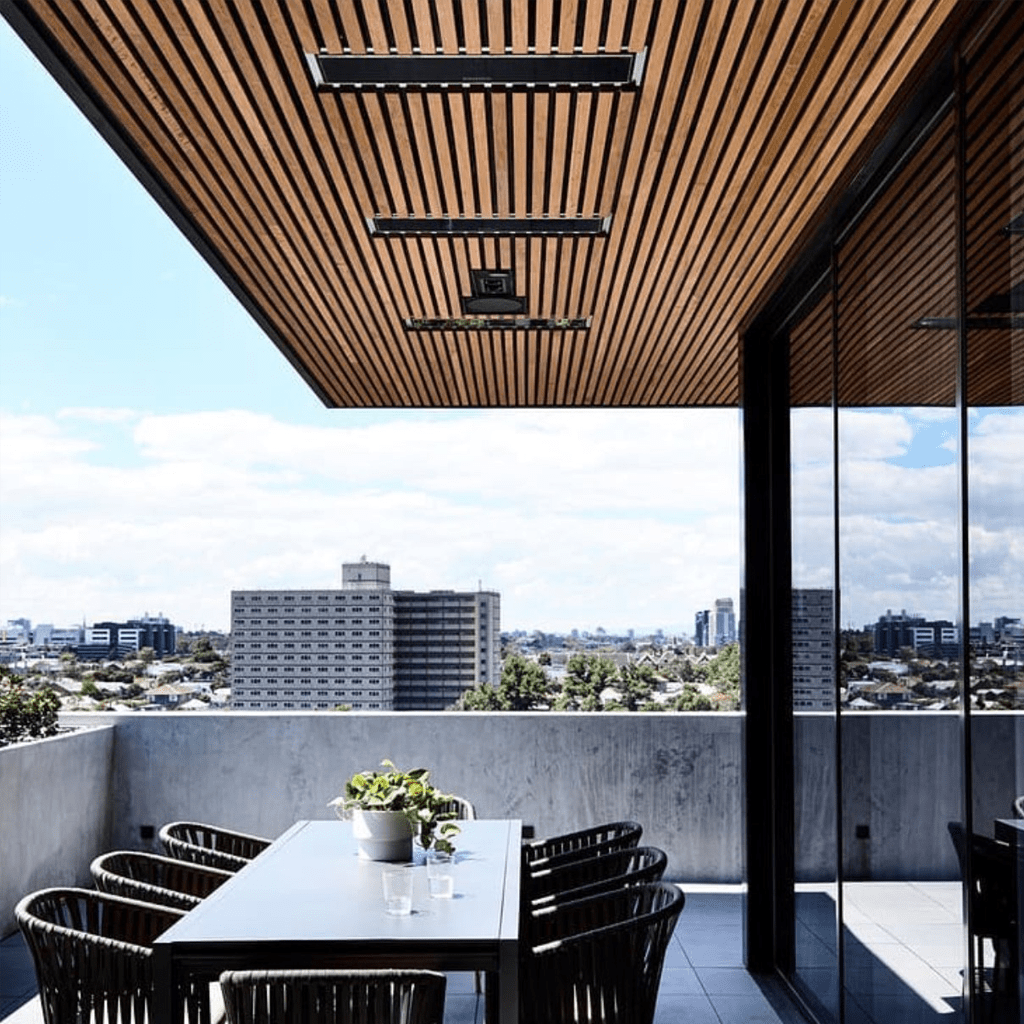

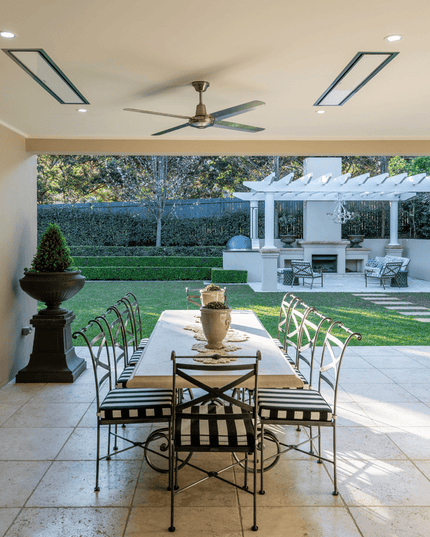

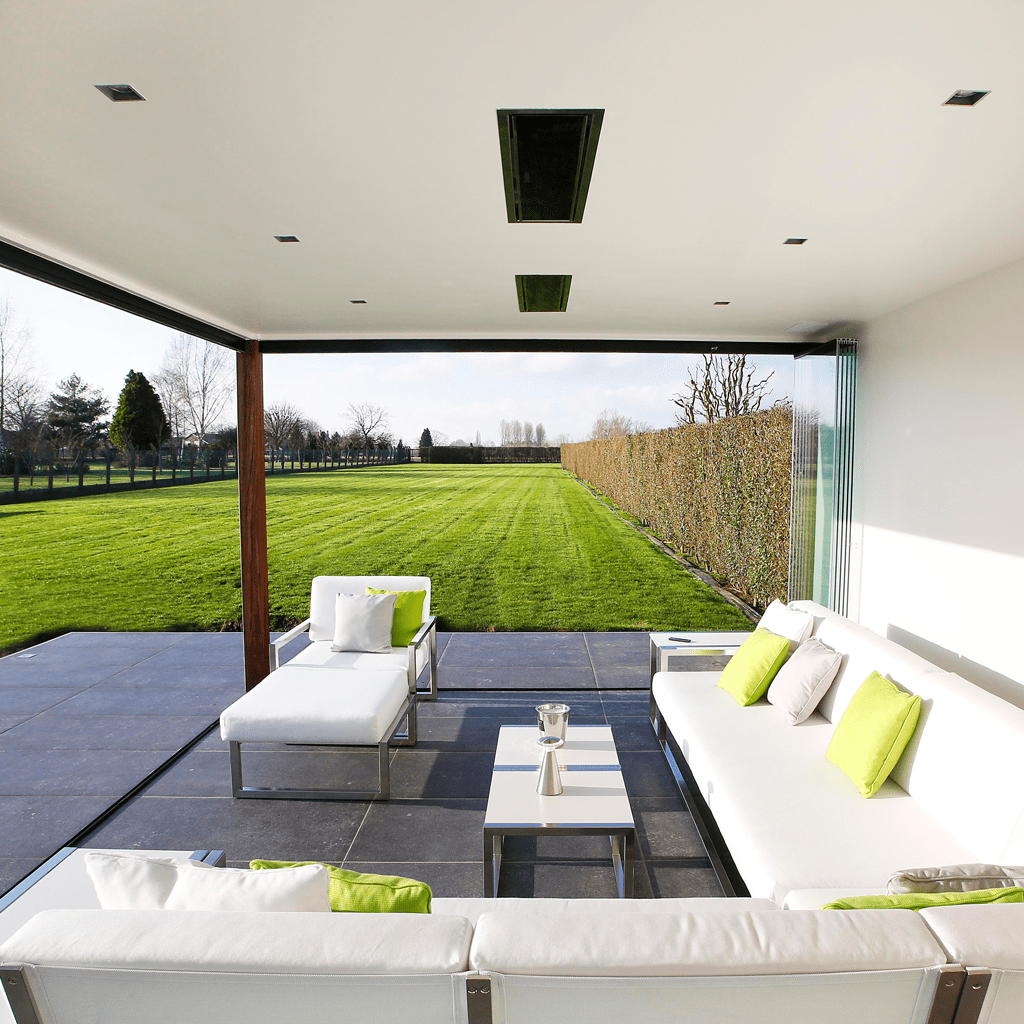

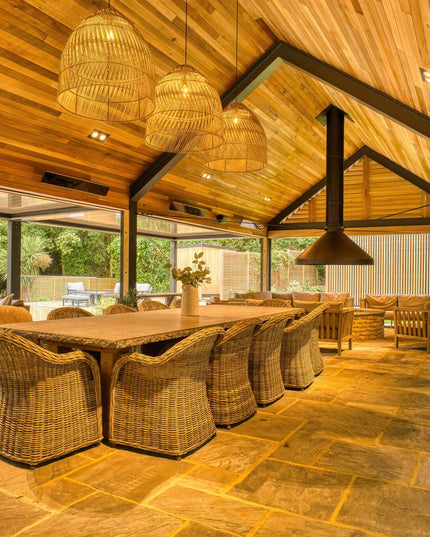

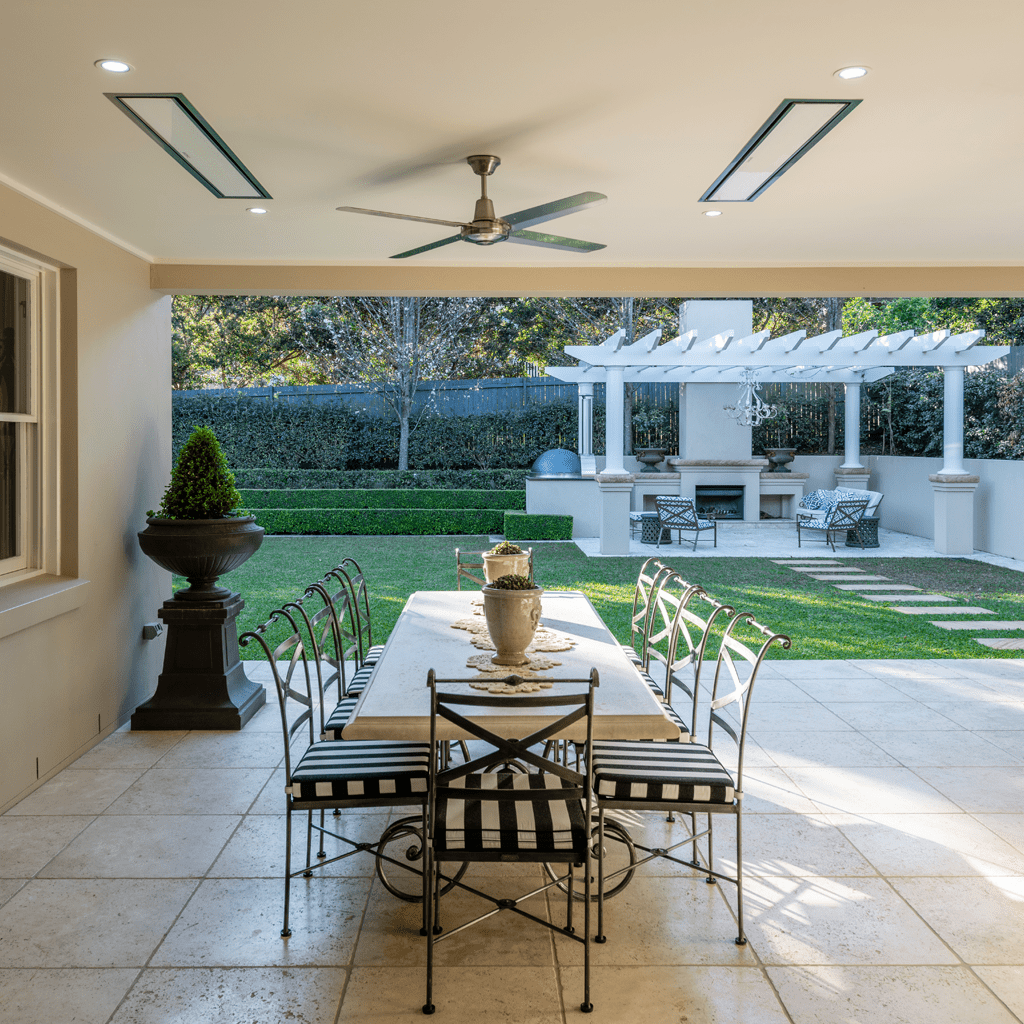

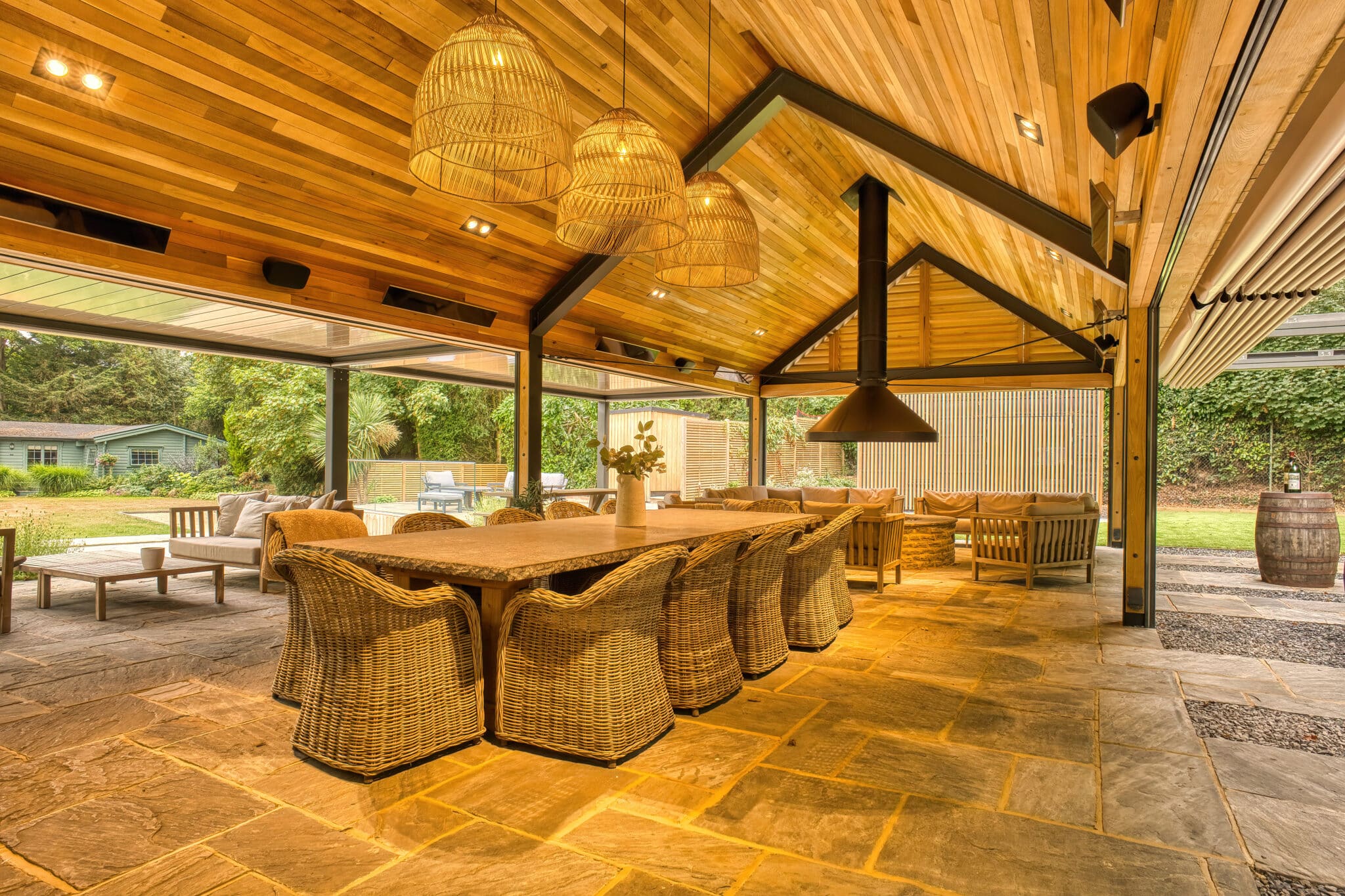

- Variety of Mounting Options: The Platinum Smart-Heat™ Electric series offers multiple mounting options, providing flexibility in installation. Whether you prefer wall-mounted, ceiling-mounted, or recessed configurations, these heaters can be tailored to fit your specific outdoor layout.
Low Clearance Recess Kit
- Seamless Integration: The new Low Clearance Recess Kit is designed to fit seamlessly into standard ceiling joists, making it easier than ever to incorporate the Platinum Electric 2300W, 3400W, and 4500W heaters into both remodels and new designs.
- Reduced Installation Clearances: The built-in frame allows for reduced cavity installation clearances of as low as 7 inches, providing complete versatility in specifying functional outdoor spaces without sacrificing style or performance.
Platinum Smart-Heat™ Gas Series
- High-Performance Heating: The Platinum Smart-Heat™ Gas series is available in two heat outputs (23,600 BTU and 39,800 BTU) and offers both propane and
Dimensions

Features
• Adjustable Mounting Brackets - For efficient, directional heat distribution.
• Compact & Elegant Design - Seamless integration into design-focused spaces.
Specs
Please reference the specification guide below to help you select the correct solution for your needs. Heaters include mounting brackets that can be used for both wall and ceiling installations. Additional ceiling mount options available. Recommended to be purchased with Bromic Controls.
| MODEL | 2300W SERIES | 2300W SERIES | 3400W SERIES | 3400W SERIES | 4500W SERIES | 4500W SERIES |
| FUEL TYPE | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| COLOR | BLACK | WHITE | BLACK | WHITE | BLACK | WHITE |
| WEIGHT | 17lbs | 17lbs | 22lbs | 22lbs | 33lbs | 33lbs |
| MODEL # | BH0320003 | BH0320007 | BH0320005 | BH0320008 | BH3622000 | BH3622001 |
| HEAT AREA | 65ft2 | 65ft2 | 108ft2 | 108ft2 | 143ft2 | 143ft2 |
| RATED CURRENT * | 220-240V/9.6A 208V/11.1A |
220-240V/9.6A 208V/11.1A |
220-240V/14.2A 208V/16.3A |
220-240V/14.2A 208V/16.3A |
220-240V/18.8A 208V/21.6A |
220-240V/18.8A 208V/21.6A |
| MINIMUM FLOOR CLEARANCE | Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
Wall 72” Ceiling 96” |
| APPROVAL CERTIFICATION | Intertek ETL / cETL 5001799 | |||||
| CONTROL OPTIONS | 2300W SERIES | 3400W SERIES | 4500W SERIES |
| AFFINITY ON/OFF | ✓ | ✓ | ✓ |
| AFFINITY DIMMER | ✓ | ✓ | ✓ |
| MANUAL WALL SWITCH | ✓ | ✓ | ✓ |
*Available in varying voltages: 220/240v.
**Independently control up to six zones of heaters with unlimited heaters per zone from a single remote. Dimmer controller required. Control operates within 30m of heaters.
