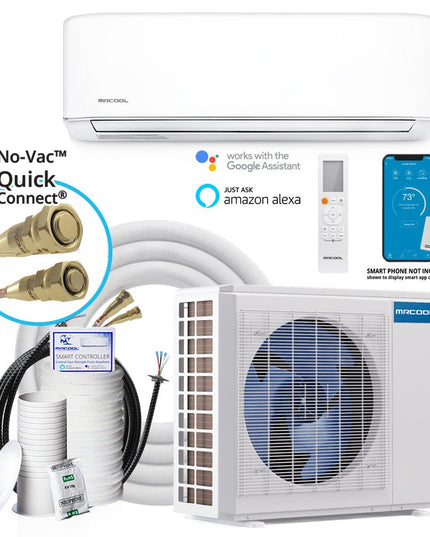

MRCOOL® DIY 4th Gen 36k BTU Ductless Mini-Split Air Handler 208-230V/60Hz
- MRCOOL
MRCOOL® DIY 4th Gen 36k BTU Ductless Mini-Split Air Handler 208-230V/60Hz
$1,188.00
- Safe & Secure Checkout
- Warranty 7-Year Compressor / 5-Year Parts View Full Warranty Details
SKU: DIY-36-HP-WMAH-230C25
Barcode: 00810063868550

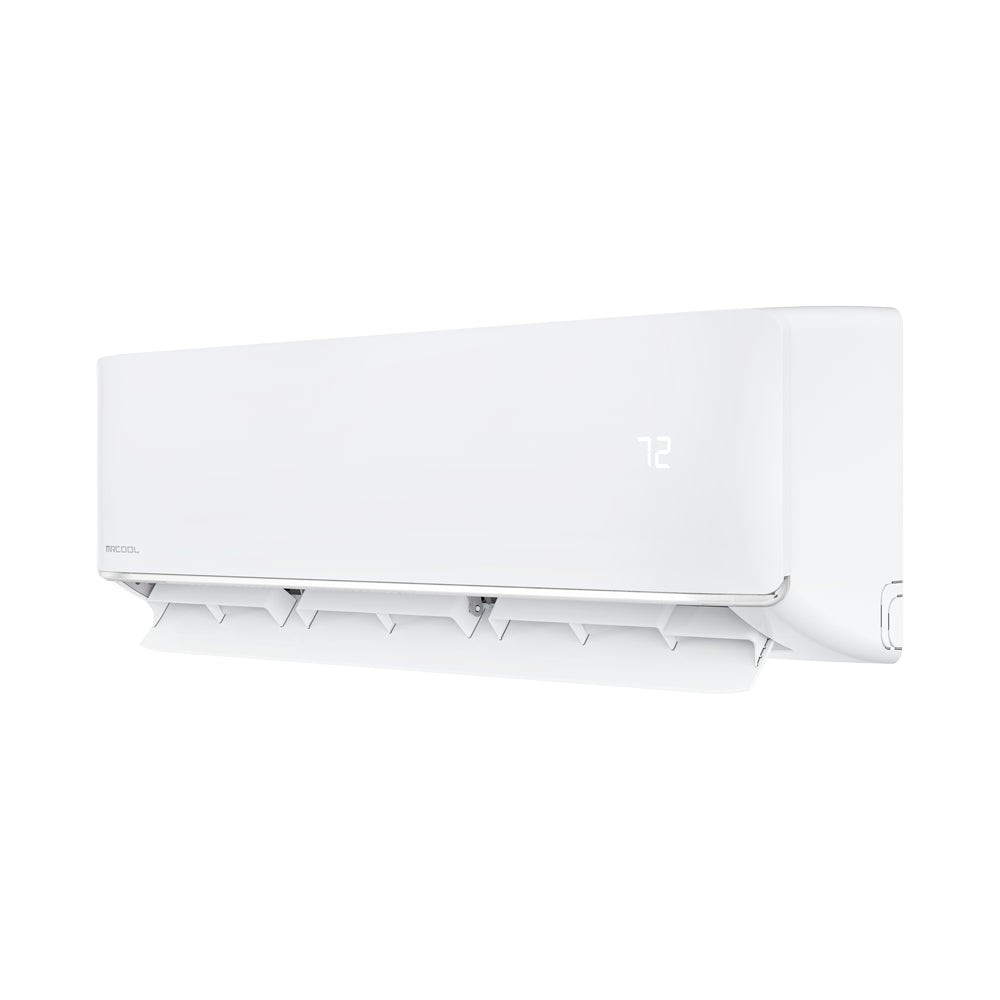

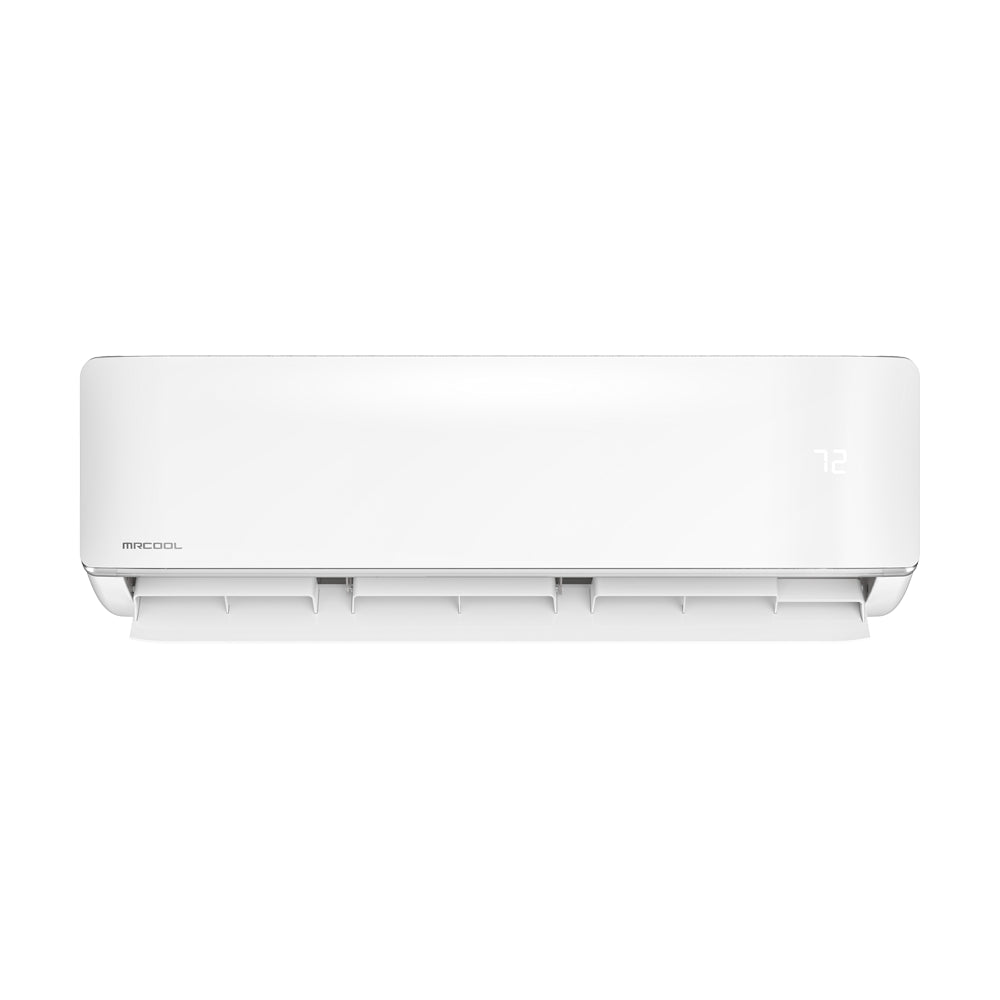

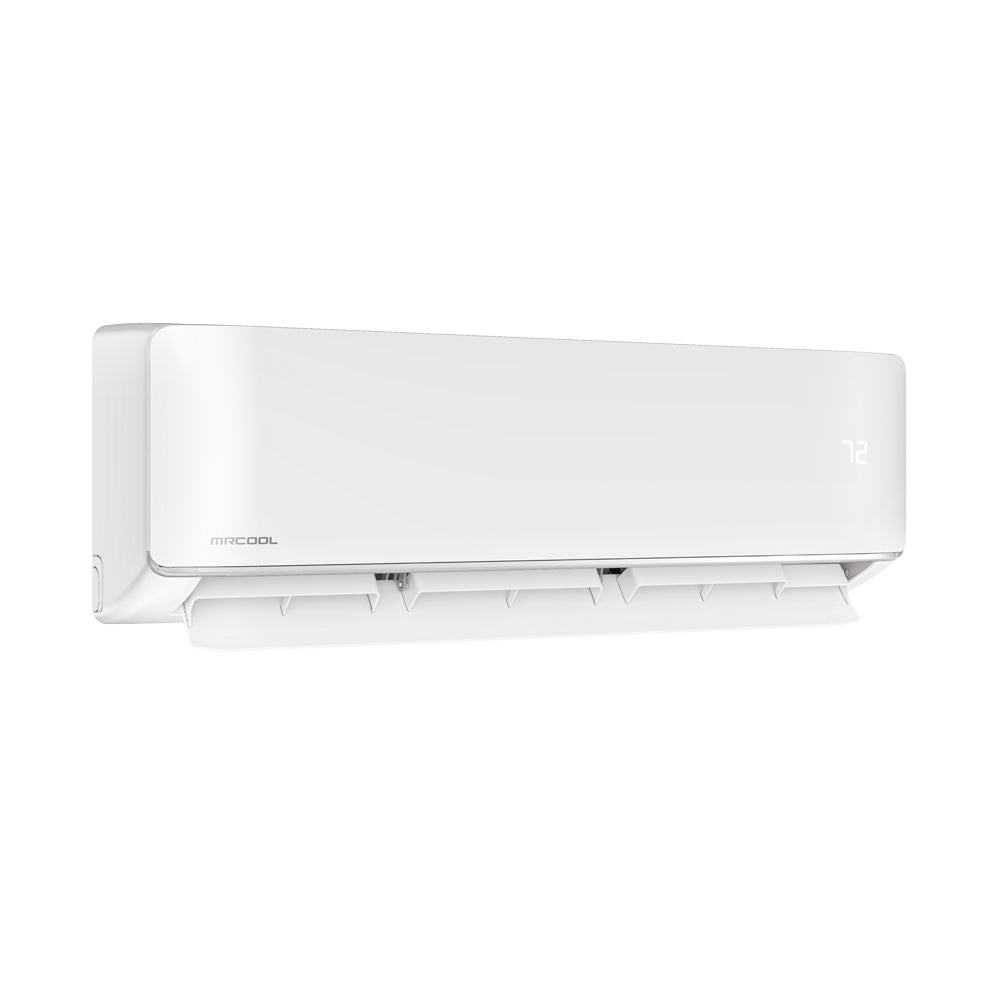

MRCOOL® 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler – High-Capacity Comfort Made Easy
The MRCOOL® 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler is the most powerful air handler in the MRCOOL DIY series, delivering superior heating and cooling for spaces up to 1,500 sq. ft. Designed for both efficiency and convenience, this unit achieves an 18 SEER efficiency rating when connected to a MRCOOL® Condenser, ensuring optimal performance while reducing energy costs.
- Powerful Performance & Versatile Modes
- This high-capacity air handler features multiple operating modes to ensure maximum comfort in any season, including:HEAT – Provides reliable heating even in colder temperatures.
-
COOL – Delivers strong cooling performance for hot summer days.
-
AUTO – Automatically adjusts to maintain the ideal temperature.
-
DRY (Dehumidify) – Removes excess moisture for improved air quality.
- SLEEP – Optimizes energy use for a comfortable night’s rest.
- Smart Control for Ultimate Convenience
- With built-in Wi-Fi connectivity, this air handler is fully compatible with the Smart HVAC app, allowing you to control your home’s temperature from anywhere using your Apple or Android smartphone. Stay in control whether you're at home or on the go!
- Easy DIY Installation – No Professional Needed!

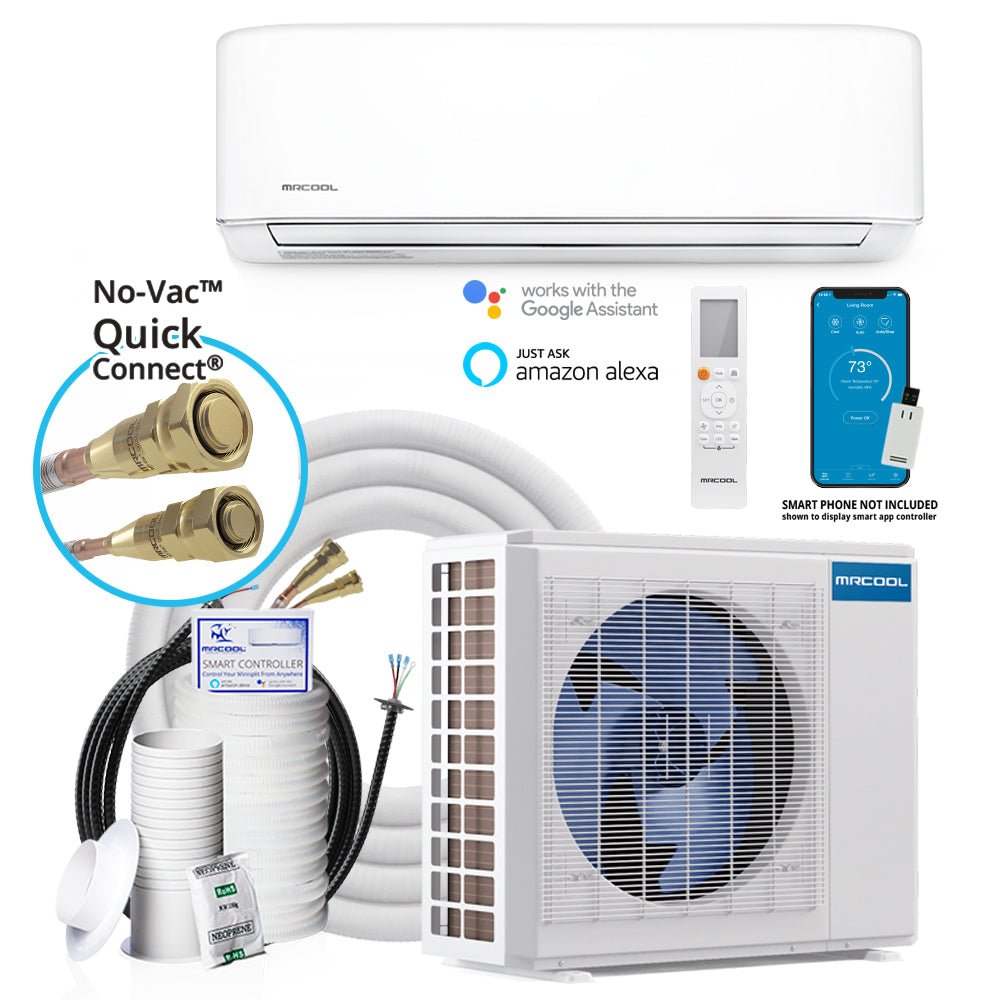

- The MRCOOL DIY 36K BTU Air Handler is designed for simple, hassle-free installation with the MRCOOL Pre-Charged Quick Connect Line Set. This patented technology allows for a quick and secure connection using only two wrenches—no vacuuming or refrigerant charging required!
Sleek, Space-Saving Design
-
Compact & lightweight for easy installation on most interior walls
-
Includes a sturdy mounting plate for secure placement
- Minimalist, modern design blends seamlessly with any décor
Why Choose the MRCOOL 4th Generation DIY 36K BTU Air Handler?
- Covers large areas up to 1,500 sq. ft.
- High 18 SEER efficiency for lower energy bills
- Multiple modes for year-round comfort
- Smart app control for remote access
- Quick, DIY installation with Pre-Charged Quick Connect Line Set
- No professional technician required
Upgrade your home’s heating and cooling with the MRCOOL 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler—the perfect high-performance, energy-efficient, and easy-to-install solution for large spaces.
Key Features
| SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection |
| Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
| Compatible with Amazon Alexa and Google Assistant |
| Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements |
Specs
| COOLING CAPACITY (BTU) | 36000 |
| HEATING CAPACITY (BTU) | 36000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MOUNT TYPE | Wall |
| COLOR | White |
| COLOR FAMILY | White |
| MAX COVERAGE AREA | Up to 1500 |
| REFRIGERANT TYPE | R-410A |
| DECIBEL RATING (DBA) | 52/45/34 |
| DECIBEL RATING LOW (DBA) | 34 |
| DECIBEL RATING HIGH (DBA) | 52 |
| INVERTER | Yes |
| MAX LINESET LENGTH (FT) | 213.25 |
| LIQUID LINE SIZE | 8-Mar |
| SUCTION LINE SIZE | 8-May |
| BLOWER MOTOR RPM | 1200/950/750 |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Limited Lifetime Compressor |
| BASE WARRANTY | 5-year Parts/7-year Compressor |
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY | Limited Lifetime Compressor |
| BASE COMPRESSOR WARRANTY | 7-year Compressor |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 11.1 |
| NET HEIGHT (IN) | 14.25 |
| NET WIDTH (IN) | 49.57 |
| NET WEIGHT (LBS) | 47.84 |
| GROSS DEPTH (IN) | 21.26 |
| GROSS HEIGHT (IN) | 19.69 |
| GROSS WIDTH (IN) | 56.69 |
| GROSS WEIGHT (LBS) | 78 |
